BMC PRO 827 LCX LKT YHF
Grup Adı/Group Name :
Şasi ve sürücü kabini / Chassis & cab

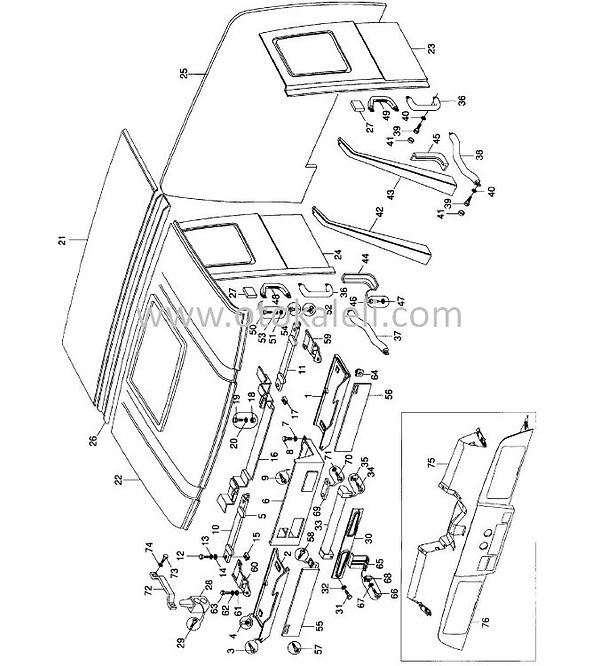

Komple Adı/Assy Name :
Tavan döşemesi / Headlining
8K92882N
SEKIL/FIG | PARCA KODU / PART CODE | PARCA ADI | PART NAME | MIKTAR / QTY. | ACIKLAMA / REMARK |
|---|---|---|---|---|---|
1 | 8K37101 | Cep, tavan-Sol | Pocked roof-LH | 1 | ESKİTİP/OLDTYPE |
1 | 58RS103743 | Cep, tavan-Sol | Pocked roof-LH | 1 | YENİTİP/NEWTYPE |
2 | 58RS103744 | Cep, tavan-Sağ | Pocket roof-RH | 1 | YENİTİP/NEWTYPE |
2 | 8K37102 | Cep, tavan-Sağ | Pocket roof-RH | 1 | ESKİTİP/OLDTYPE |
3 | AB606044 | Sac vidası | Screw, sheet | 4 | |
4 | 58RS103641 | Dübel | Fastener | 6 | YENİTİP/NEWTYPE |
4 | 8K93074 | Dübel | Fastener | 6 | ESKİTİP/OLDTYPE |
5 | 58RS103760 | Takviye, cep tavan | Reinforcement, pocket roof | 4 | YENİTİP/NEWTYPE |
5 | 8K37114 | Takviye, cep tavan | Reinforce,pocket roof | 4 | ESKİTİP/OLDTYPE |
6 | 8K230129 | Konsol-Orta tavan | Console-Center roof | 1 | |
6 | 8K37100 | Konsol, orta tavan | Console-Center roof | 1 | |
6 | 8K231873 | Konsol, orta tavan | Consol-Center roof | 1 | ESKİTİP/OLDTYPE |
6 | 58RS101247 | Konsol-Orta tavan | Consol-Center roof | 1 | |
6 | 58RS101600 | Konsol-Orta tavan | Consol-Center roof | 1 | |
7 | WA105004 | Düz rondela | Washer, plain | 2 | |
8 | SH105124 | Cıvata | Screw | 2 | |
9 | AB610044 | Sac vidası | Screw | 2 | |
10 | 58RS103762 | Braket, üst konsol-Sağ | Bracket, upper console-RH | 1 | YENİTİP/NEWTYPE |
10 | 8K37118 | Braket, üst konsol-Sağ | Bracket,upper consol-RH | 1 | ESKİTİP/OLDTYPE |
11 | 8K37117 | Braket, üst konsol-Sol | Bracket,upper consol-LH | 1 | ESKİTİP/OLDTYPE |
11 | 58RS103761 | Braket, üst konsol-Sol | Bracket, upper console-LH | 1 | YENİTİP/NEWTYPE |
12 | SH106164 | Cıvata | Screw | 8 | |
13 | WA106044 | Düz rondela | Washer, plain | 8 | |
14 | WL106004 | Yaylı rondela | Washer, spring | 8 | |
15 | 8K57699 | Klips | Clip | 4 | |
16 | 8K63150 | Braket, üst konsol bağlantı | Bracket,upper consol mount. | 1 | |
17 | PFS310 | Klips | Clip | 2 | |
18 | AK606031 | Somun | Nut | 2 | |
19 | SH105124 | Cıvata | Screw | 2 | |
20 | WA105004 | Düz rondela | Washer, plain | 2 | |
21 | 8K37127 | Trim, tavan-Arka | Pad trim roof-Rear | 1 | (LCX/LKT) |
21 | 58RS101663 | Trim, tavan-Arka | Pad trim roof-Rear | 1 | (YCX/YHF) |
22 | 8K37125 | Trim, tavan-Ön | Pad trim roof-Front | 1 | (LCX/LKT) |
22 | 58RS101664 | Trim, tavan-Ön | Pad trim roof-Front | 1 | (YCX/YHF) |
23 | 8K231491 | Trim, yan-Sol | Pad trim, side-LH | 1 | (LCX/LKT) |
23 | 58RS103317 | Trim, yan-Sol | Pad trim, side-LH | 1 | (YCX/YHF) |
23 | 8K37180 | Trim, yan-Sol | Pad trim, side-LH | 1 | |
23 | 8K230204 | Trim, yan-Sol | Trim, side-LH | 1 | |
24 | 58RS103316 | Trim, yan-Sağ | Pad trim, side-RH | 1 | (YCX/YHF) |
24 | 8K231490 | Trim, yan-Sağ | Pad trim, side-RH | 1 | (LCX/LKT) |
24 | 8K230203 | Trim, yan-Sağ | Trim, side-RH | 1 | |
24 | 8K37181 | Trim, yan-Sağ | Pad trim, side-RH | 1 | |
25 | 8K37167 | Trim, arka | Pad trim-Rear | 1 | (LCX/LKT) |
25 | 58RS103318 | Trim, arka | Pad trim, rear | 1 | (YCX/YHF) |
26 | 8K93761 | Trim, tavan | Pad trim roof | 1 | (LCX/LKT) |
26 | 58RS101665 | Trim, tavan | Pad trim, roof | 1 | (YCX/YHF) |
27 | 8K93288 | Sünger takoz, kapı döşemesi | Cushion rubber-Trim door | 10 | |
28 | 8K230126 | Elbise askısı | Cloth hanger | 2 | |
28 | 8K93380 | Elbise askısı | Hanger | 2 | |
29 | 8M67803 | Dübel, yuva | Fastener | 35 | |
29 | 8M67802 | Dübel, gövde | Fastener-Headlining-ASSY. | 35 | |
30 | 8K63162 | Braket, ön cam çerçevesi | Bracket, frame windscreen | 1 | |
31 | SH105124 | Cıvata | Screw | 2 | |
32 | WA105004 | Düz rondela | Washer, plain | 2 | |
33 | 8K37113 | Perde, ön cam | Stor,windscreen | 1 | |
34 | AB606044 | Sac vidası | Screw, sheet | 2 | |
35 | 8K57699 | Klips | Clip | 2 | |
36 | 8K35351 | Tutunma kolu-KMPL. | Handle-ASSY. | 1 | |
36 | 8K93871 | Tutunma kolu-KMPL. | Handle-ASSY. | 1 | |
37 | 8K93768 | Tutunma kolu-Sağ | Handle-RH-Headlining-ASSY. | 1 | |
38 | 8K93769 | Tutunma kolu-Sol | Handle-LH-Headlining-ASSY. | 1 | |
39 | SH112254 | Cıvata | Screw | 8 | |
40 | WL112002 | Yaylı rondela | Washer, spring | 8 | |
41 | 8K231963 | Vida kapağı | Bolt cover | 8 | |
42 | 8K37186 | Ön baba iç trimi-Sağ | Padding,front pillar-RH | 1 | ESKİTİP/OLDTYPE |
42 | 58RS103538 | Ön baba iç trimi-Sağ | Padding, front pillar-RH | 1 | YENİTİP/NEWTYPE |
43 | 58RS103537 | Ön baba iç trimi-Sol | Padding, front pillar-LH | 1 | YENİTİP/NEWTYPE |
43 | 8K37187 | Ön baba iç trimi-Sol | Padding,front pillar-LH | 1 | ESKİTİP/OLDTYPE |
44 | 58RS103564 | Ön baba alt trimi-Sağ | Lower trim, front pillar-RH | 1 | YENİTİP/NEWTYPE |
44 | 8K37192 | Ön baba alt trimi-Sağ | Lower trim,front pillar-RH | 1 | ESKİTİP/OLDTYPE |
45 | 8K37193 | Ön baba alt trimi-Sol | Lower trim,front pillar-LH | 1 | ESKİTİP/OLDTYPE |
45 | 58RS103565 | Ön baba alt trimi-Sol | Lower trim, front pillar-LH | 1 | YENİTİP/NEWTYPE |
46 | AD610054 | Sac vidası | Screw | 4 | |
47 | WA105004 | Düz rondela | Washer, plain | 4 | |
48 | 8K16546 | Tutunma kolu-Sağ | Handle grap-RH | 1 | ESKİTİP/OLDTYPE |
48 | 58RS103566 | Tutunma kolu-Sağ | Handle arm-RH | 1 | YENİTİP/NEWTYPE |
49 | 58RS103567 | Tutunma kolu-Sol | Handle arm-LH | 1 | YENİTİP/NEWTYPE |
49 | 8K16547 | Tutunma kolu-Sol | Handle grap-LH | 1 | ESKİTİP/OLDTYPE |
50 | SE105254 | Vida | Screw | 4 | |
51 | WL105004 | Yaylı rondela | Washer, spring | 4 | |
52 | 8K93074 | Dübel | Fastener | 5 | |
53 | WA105004 | Düz rondela | Washer, plain | 12 | |
54 | AD610054 | Sac vidası | Screw | 12 | |
55 | 58RS103618 | Güneş siperliği-Sağ | Sun visor-RH | 1 | YENİTİP/NEWTYPE |
55 | 8K63136 | Güneş siperliği-KMPL.Sağ | Sun visor-ASSY.RH | 1 | ESKİTİP/OLDTYPE |
56 | 58RS103619 | Güneş siperliği-Sol | Sun visor-LH | 1 | YENİTİP/NEWTYPE |
56 | 8K63137 | Güneş siperliği-KMPL.Sol | Sun visor-ASSY.LH | 1 | ESKİTİP/OLDTYPE |
57 | SF105164 | Vida | Screw | 2 | |
58 | AD606044 | Sac vidası | Screw | 4 | |
59 | 8K63157 | Braket, güneş siperliği-Sol | Bracket, sun visor-LH | 1 | |
60 | 8K63158 | Braket, güneş siperliği-Sağ | Bracket, sun visor-RH | 1 | |
61 | WA106044 | Düz rondela | Washer, plain | 4 | |
62 | WL106004 | Yaylı rondela | Washer, spring | 4 | |
63 | SH106164 | Cıvata | Screw | 4 | |
64 | 8K63141 | Arka pleyt, güneş siperliği | Rear pleyt, sun visor retainer | 2 | |
65 | 8K63164 | Braket, iç dikiz aynası | Bracket,inner rear view mirror | 1 | |
66 | AB606031 | Sac vidası | Screw | 2 | |
67 | WA106041 | Düz rondela | Washer, plain | 2 | |
68 | 8K57699 | Klips | Clip | 2 | |
69 | 8K93516 | Kapak, orta konsol | Cover, center consul | 1 | ESKİTİP/OLDTYPE |
69 | 58RS103759 | Kapak, orta konsol | Cover, center console | 1 | YENİTİP/NEWTYPE |
70 | SF105154 | Vida | Screw | 2 | |
71 | WA105004 | Düz rondela | Washer, plain | 2 | |
72 | 58RS104502 | Tutamak, yolcu | Handle, passenger | 1 | YENİTİP/NEWTYPE |
72 | 8K230246 | Tutamak-Yolcu | Handle-Headlining-ASSY. | 1 | ESKİTİP/OLDTYPE |
73 | SE105301 | Vida | Screw | 2 | |
74 | WL105002 | Yaylı rondela | Washer, spring | 2 | |
75 | 58RS101672 | Karkas-KMPL.Üst konsol | Carcas-ASSY.Upper consol | 1 | (YCX/YHF) |
76 | 58RS103124 | Üst konsol-KMPL. | Upper consol-ASSY. | 1 | (YCX/YHF)ESKİTİP/OLDTY |
76 | 58RS103693 | Üst konsol-KMPL. | Upper consol-ASSY. | 1 | (YCX/YHF)YENİTİP/NEWTY |
* | 8R93762 | Döşeme seti | Headlining set | 1 | |
* | 8R230202 | Döşeme seti | Headlining set | 1 | |
* | 8R231489 | Döşeme seti | Headlining set | 1 |
