BMC PRO 827 ZCX ZHF

Grup Adı/Group Name :

Vites kutusu / Gearbox

Komple Adı/Assy Name :

Kamalı mil / Main shaft

57RS305654G

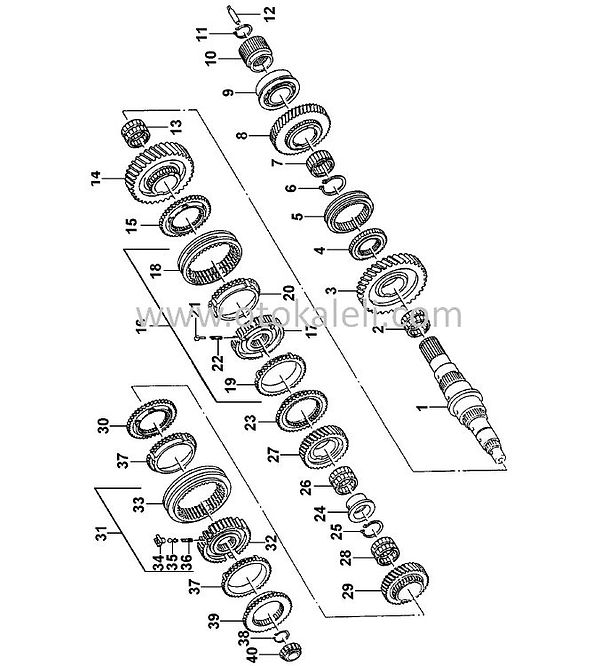

SEKIL/FIG	PARCA KODU / PART CODE	PARCA ADI	PART NAME	MIKTAR / QTY.	ACIKLAMA / REMARK
1	9P901975	Kamalı mil	Mainshaft	1
2	9P901976	İğneli rulman	Needle bearing	1
3	9P901977	Helezoni dişli	Helical gear	1
4	9P901978	Senkromeç flanşı	Synchronizer flange	1
5	9P901979	Kayıcı kovan	Sliding sleeve	1
6	9P901983	Tutucu segman	Retaining ring	1	(60x2,5)
6	9P901982	Tutucu segman	Retaining ring	1	(60x2,6)
6	9P901984	Tutucu segman	Retaining ring	1	(60x2,4)
6	9P901981	Tutucu segman	Retaining ring	1	(60x2,7)
6	9P901980	Tutucu segman	Retaining ring	1	(60x2,8)
7	9P901985	Masuralı rulman	Roller bearing	1
8	9P901986	Helezoni dişli	Helical gear	1
9	9P901987	Rulman	Bearing	1
10	9P901988	Dişli	Gear	1
11	9P901993	Tutucu segman	Retaining ring	1	(50x3)
11	9P901996	Tutucu segman	Retaining ring	1	(50x2,85)
11	9P901992	Tutucu segman	Retaining ring	1	(50x3,05)
11	9P902006	Tutucu segman	Retaining ring	1	(50x2,35)
11	9P901997	Tutucu segman	Retaining ring	1	(50x2,8)
11	9P902002	Tutucu segman	Retaining ring	1	(50x2,55)
11	9P902010	Tutucu segman	Retaining ring	1	(50x2,15)
11	9P902008	Tutucu segman	Retaining ring	1	(50x2,25)
11	9P901990	Tutucu segman	Retaining ring	1	(50x3,15)
11	9P902001	Tutucu segman	Retaining ring	1	(50x2,6)
11	9P902007	Tutucu segman	Retaining ring	1	(50x2,3)
11	9P902009	Tutucu segman	Retaining ring	1	(50x2,2)
11	9P902004	Tutucu segman	Retaining ring	1	(50x2,45)
11	9P901989	Tutucu segman	Retaining ring	1	(50x3,2)
11	9P901991	Tutucu segman	Retaining ring	1	(50x3,1)
11	9P902003	Tutucu segman	Retaining ring	1	(50x2,5)
11	9P901994	Tutucu segman	Retaining ring	1	(50x2,95)
11	9P901998	Tutucu segman	Retaining ring	1	(50x2,75)
11	9P902000	Tutucu segman	Retaining ring	1	(50x2,65)
11	9P902011	Tutucu segman	Retaining ring	1	(50x2,1)
11	9P901999	Tutucu segman	Retaining ring	1	(50x2,7)
11	9P901995	Tutucu segman	Retaining ring	1	(50x2,9)
11	9P902005	Tutucu segman	Retaining ring	1	(50x2,4)
12	9P902012	Boru	Pipe	1
13	9P902014	Masuralı rulman	Roller bearing	2
14	9P902015	Helezoni dişli	Helical gear	1
15	9P902016	Senkromeç halkası	Synchronizer ring	1
16	9P902017	Senkromeç-KMPL.	Synchromesh-ASSY.	1
17	9P902018	Senkromeç göbeği	Synchronizer body	1
18	9P902019	Kayıcı kovan	Sliding sleeve	1
19	9P909408	Senkromeç halkası	Synchronizer ring	1
20	9P909408	Senkromeç halkası	Synchronizer ring	1
21	9P902021	Baskı parçası	Pressure piece	3
22	9P900720	Baskı yayı	Compression spring	3
23	9P902016	Senkromeç halkası	Synchronizer ring	1
24	9P902023	Burç	Bushing	1
25	9P902027	Tutucu segman	Retaining ring	1
25	9P902028	Tutucu segman	Retaining ring	1
25	9P902025	Tutucu segman	Retaining ring	1	(60x2,2)
25	9P902024	Tutucu segman	Retaining ring	1	(60x2,3)
25	9P902026	Tutucu segman	Retaining ring	1	(60x2,1)
25	9P901984	Tutucu segman	Retaining ring	1	(60x2,4)
26	9P902029	Masuralı rulman	Roller bearing	1
27	9P902030	Helezoni dişli	Helical gear	1
28	9P902031	Masuralı rulman	Roller bearing	2
29	9P902032	Helezoni dişli	Helical gear	1
30	9P902033	Senkromeç flanşı	Synchronizer flange	1
31	9P902034	Senkromeç-KMPL.	Synchromesh-ASSY.	1
32	9P902035	Senkromeç göbeği	Synchronizer body	1
33	9P902036	Kayıcı kovan	Sliding sleeve	1
34	9P902037	Baskı parçası	Pressure piece	3
35	9P902038	Yuvarlak pim	Ball pin	3
36	9P900720	Baskı yayı	Compression spring	3
37	9P909409	Senkromeç halkası	Synchronizer ring	2
38	9P902041	Tutucu segman	Retaining ring	1
38	9P902040	Tutucu segman	Retaining ring	1
38	9P902011	Tutucu segman	Retaining ring	1
38	9P902009	Tutucu segman	Retaining ring	1
39	9P902033	Senkromeç flanşı	Synchronizer flange	1
40	9P909407	Rulman	Bearing inner ring	1
1-40	9P901974	Kamalı mil-KMPL.	Main shaft-ASSY.	1
